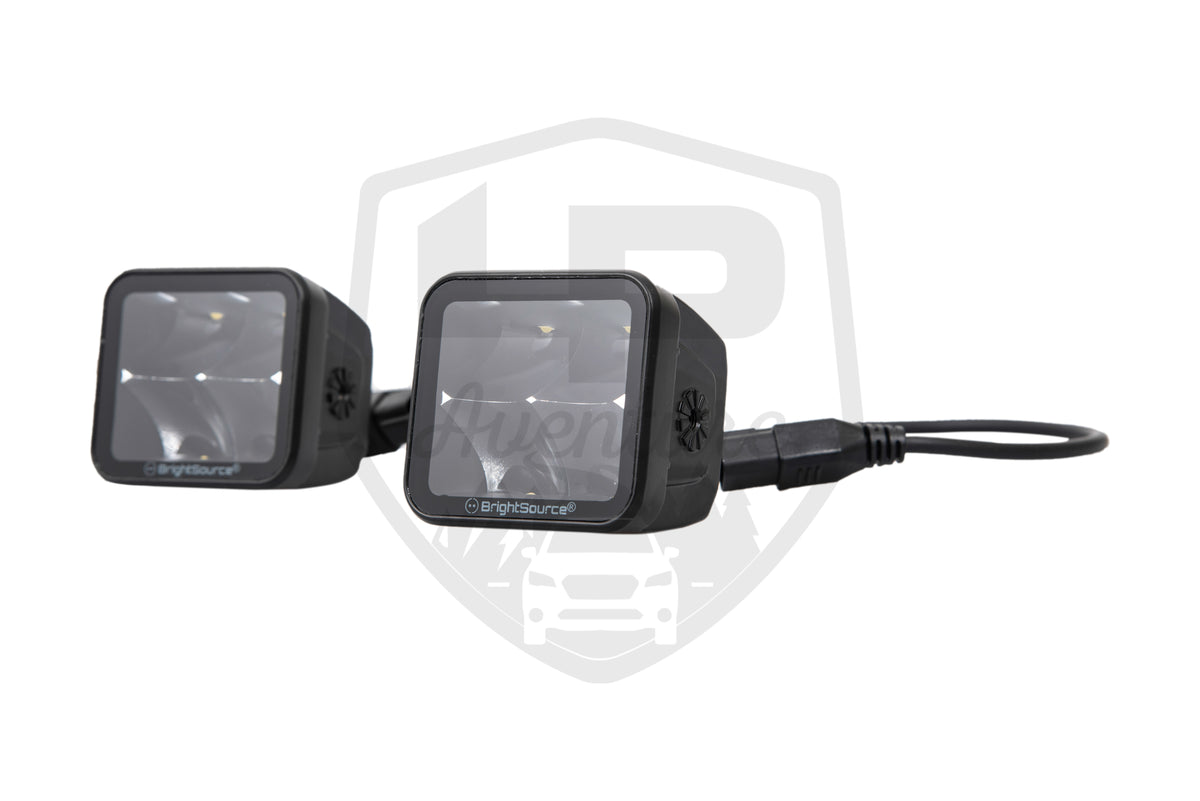

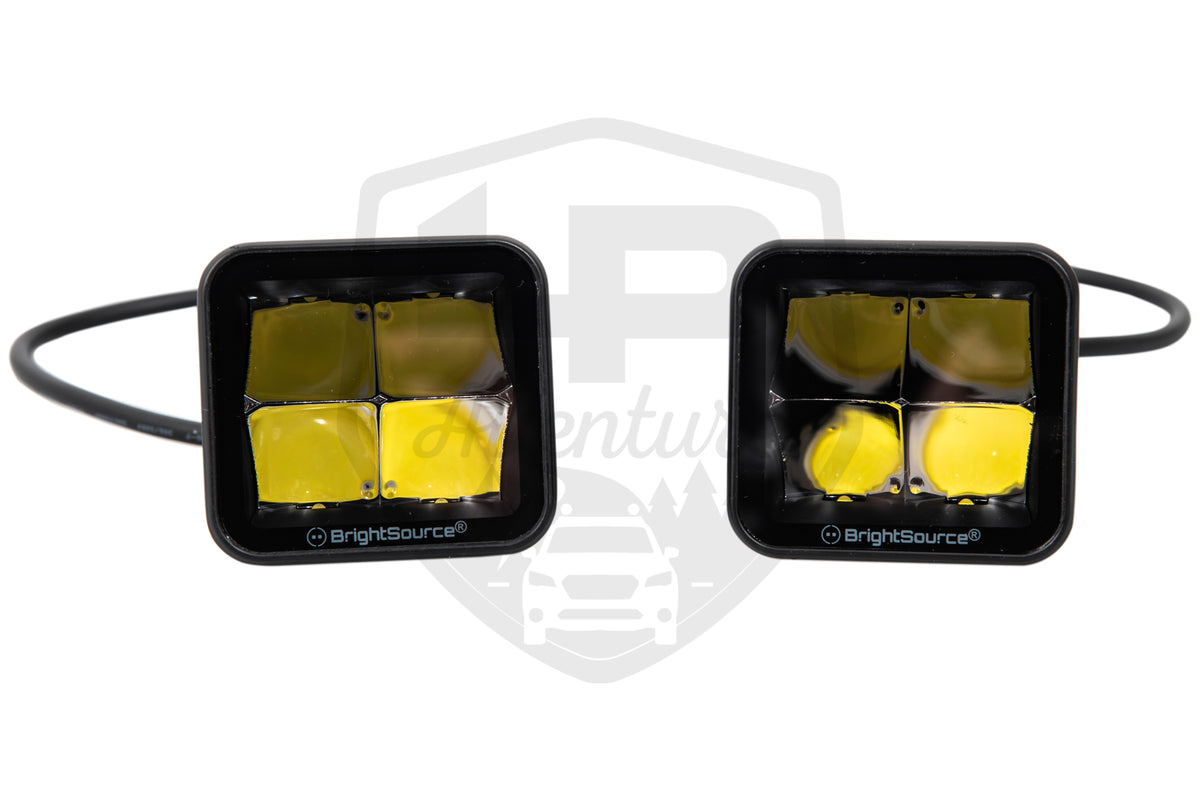

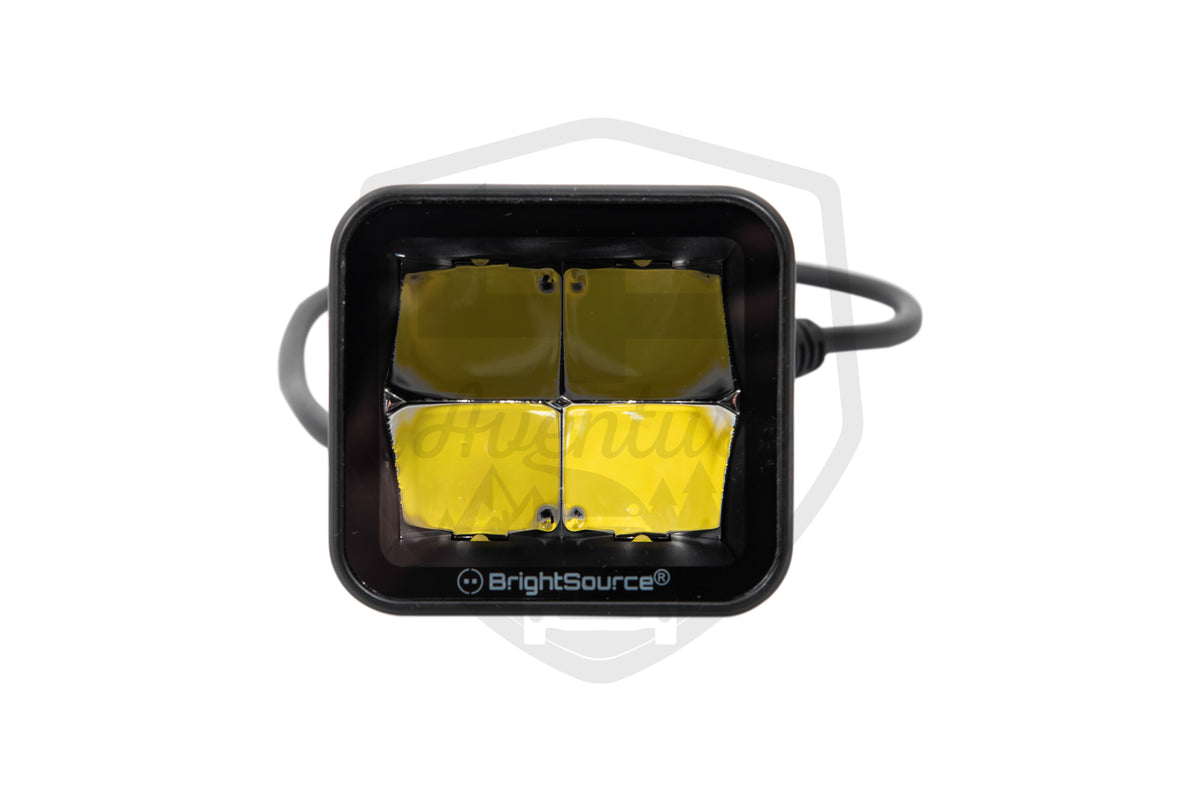

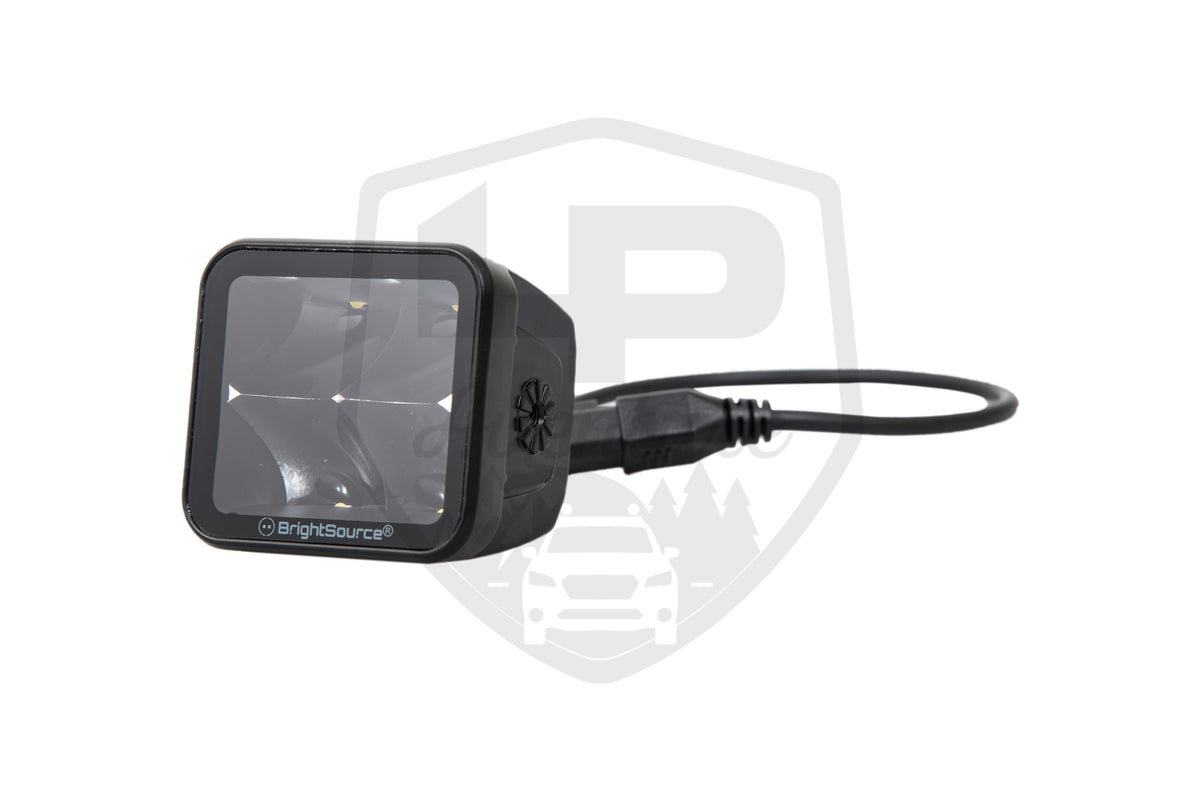

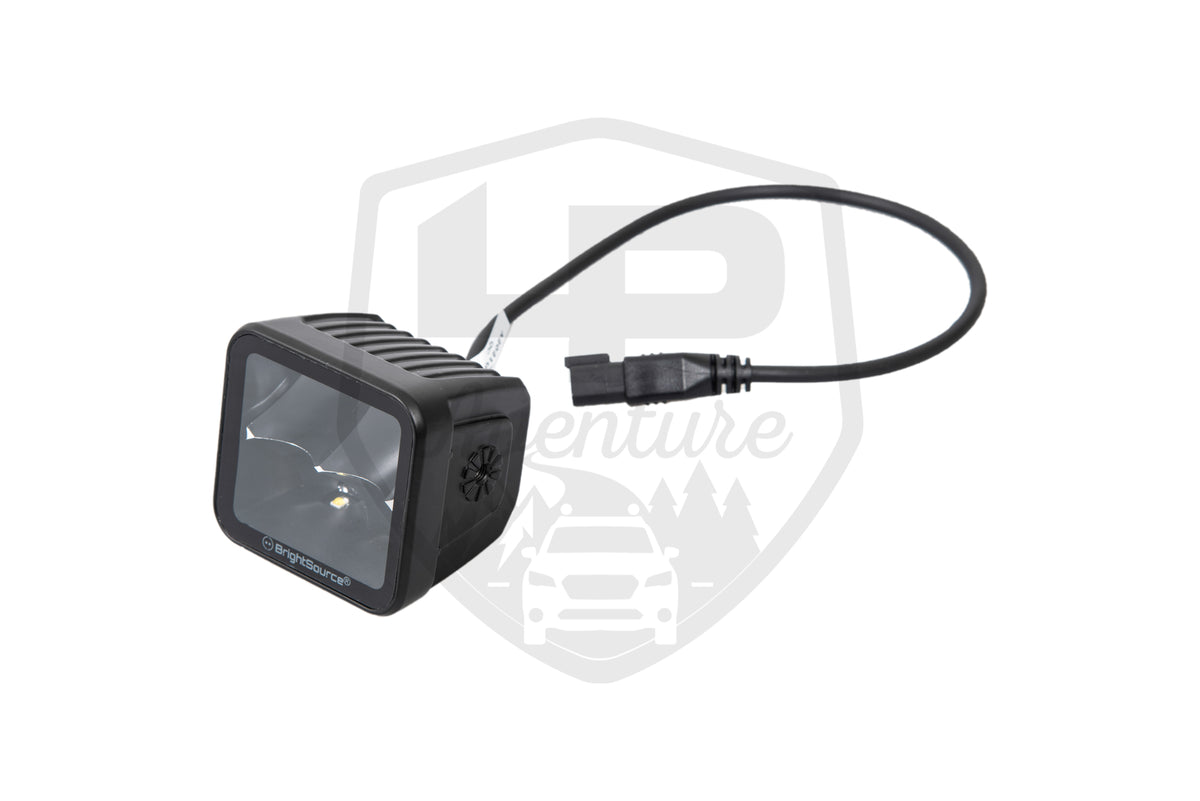

Bright Source - 3.2" Cube Light Kit – Driving Pattern

Features:

Side Reflecting Driving pattern
Modern Bezeless Lens Design
Super Powerful 40W Output
Plug and Play Harness Included
5 Year Limited Warranty

Description:

This new BrightSource SFB Cube Light has a fantastic design combination – unique Titanium Series styling and a big power punch in light output. The 3.2” bezeless housing is larger, more imposing than its smaller cousin, the 74006. The dark cosmetics of these cubes are reminiscent of our Titanium Series light bar selection. Like those light bars, the cubes have a focused, long range light output. The powerful, 40W side-emitting Osram LED chips extend the visibility range to a massive 271m. Ideal for all pick up trucks or SUVs, Powersports vehicles, back up light functions, work light options – but please note – this is an Off-Road Auxiliary Light, not for highway use.

Specifications:

LEDs:  4 x 10W Osram
Beam Pattern:  Driving Pattern
Colour Temperature:  5700K
Luminous Flux:  4800 lm (Raw) 3317 lm (Effective)
Lux:  1 Lux @ 271m
IP Rating:  IP67/69K with Waterproof Deutsch Connectors
Voltage:  DC 10-30V
Wattage:  40W
Amperage 12V/24V:  3.9A/1.62A
Reverse Polarity Protection:   Yes
Over/Under Volt. Protection:   Yes
Harness:  Integrated Relay/Switch/Deutsch Connectors, Plug and Play – Included
Temperature Range:  -40 – + 60°C
Housing Material:  Die-cast Aluminum with Powdercoat
Lens Material:  Epoxy Encapsulated Polycarbonate
Mounting Bracket: Powder coated Steel bracket and 304 stainless steel hardware
Dimensions:  81 x 75 x 67.5 mm (3.2 x 3 x 2.7″)
LED Lifespan: 30,000+ hrs
Warranty: 5 Year Limited

What’s included: This kit includes two lamps and a harness
